SKU: nqq5vzoxon
| ABSRing Yes/No | No |
|---|---|
| Bolt Circle Diameter(inch) | 4.5 |
| Bolt Circle Diameter(mm) | 114.3 |
| Bolt Hole(inch) | 0.5 |
| Bolt Hole(mm) | 12.7 |
| Center Hole Diameter(inch) | 2.5236 |
| Center Hole Diameter(mm) | 64.1 |
| Discard Thickness(inch) | 0.315 |
| Discard Thickness(mm) | 8.001 |
| Nominal Thickness(inch) | 0.353 |
| Nominal Thickness(mm) | 8.9662 |
| Numberof Bolts/Holes | 5 |

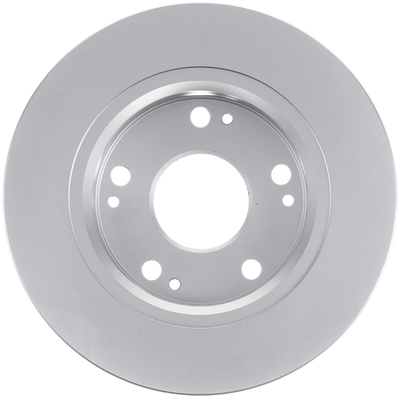

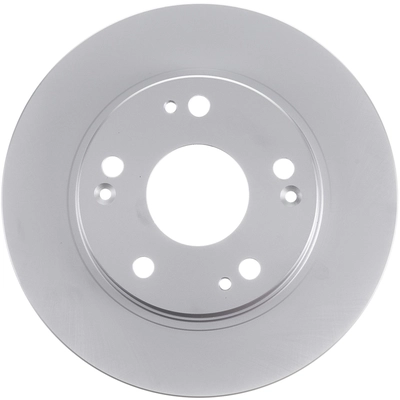

| Part Number | B31420 |
| Rotor Height(inch) | 1.6535 |
| Rotor Height(mm) | 42.0 |
| Rotor Inner Diameter(inch) | 6.8504 |
| Rotor Inner Diameter(mm) | 174.0 |
| Rotor Outside Diameter(inch) | 10.2362 |
| Rotor Outside Diameter(mm) | 260.0 |
| Rotor Style | SOLID |
| Weight(kg) | 3.4473 |
| Weight(lbs) | 7.5899 |
| Year | Make | Model |
|---|---|---|
| 2006, 2007, 2008, 2009, 2010, 2011 | ACURA | CSX |
| 2013, 2014, 2015 | ACURA | ILX |
| 2013, 2014, 2015 | ACURA | ILX HYBRID |
| 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 | HONDA | CIVIC |
| 2009, 2010, 2011 | HONDA | CIVIC HYBRID |
| Specifications | Descriptions |
|---|---|
| No Specifications | |
