SKU: 3zdo6a4d4n
| ABSRing Yes/No | No |
|---|---|
| Bolt Circle Diameter(inch) | 3.93701 |
| Bolt Circle Diameter(mm) | 100.0 |
| Bolt Hole(inch) | 0.5039 |
| Bolt Hole(mm) | 12.8 |
| Center Hole Diameter(inch) | 2.2835 |
| Center Hole Diameter(mm) | 58.0 |
| Discard Thickness(inch) | 0.866 |
| Discard Thickness(mm) | 21.9964 |
| Nominal Thickness(inch) | 0.945 |
| Nominal Thickness(mm) | 24.003 |
| Numberof Bolts/Holes | 5 |
| Part Number | B31407 |
| Rotor Height(inch) | 2.23 |
| Rotor Height(mm) | 56.642 |
| Rotor Inner Diameter(inch) | 7.3858 |
| Rotor Inner Diameter(mm) | 187.6 |
| Rotor Outside Diameter(inch) | 11.55 |
| Rotor Outside Diameter(mm) | 293.37 |

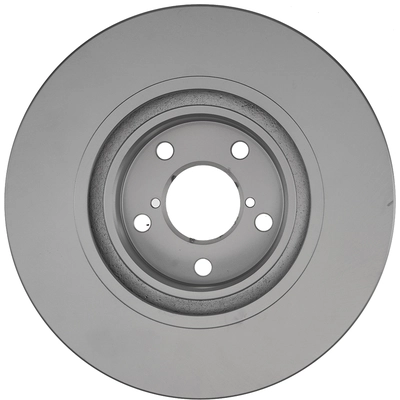

| Rotor Style | VENTED |
| Weight(kg) | 7.4162 |
| Weight(lbs) | 16.3282 |
| Year | Make | Model |
|---|---|---|
| 2013, 2014, 2015, 2016 | SCION | FR-S |
| 2005, 2006 | SUBARU | BAJA |
| 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2022, 2023, 2024 | SUBARU | BRZ |
| 2016, 2017 | SUBARU | CROSSTREK |
| 2016 | SUBARU | CROSSTREK HYBRID |
| 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 | SUBARU | FORESTER |
| 2008, 2009, 2010, 2011, 2012, 2013, 2014 | SUBARU | IMPREZA |
| 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 | SUBARU | LEGACY |
| 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 | SUBARU | OUTBACK |
| 2015 | SUBARU | WRX |
| 2013, 2014, 2015 | SUBARU | XV CROSSTREK |
| 2014, 2015 | SUBARU | XV CROSSTREK HYBRID |
| 2017, 2018, 2019, 2020 | TOYOTA | 86 |
| 2022, 2023, 2024 | TOYOTA | GR86 |
| Specifications | Descriptions |
|---|---|
| No Specifications | |
