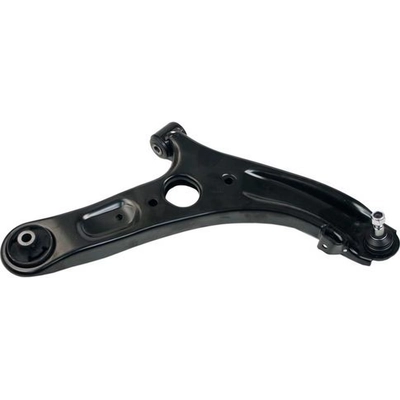

Moog R Series Control Arms With Ball Joint is the right choice for a value-driven replacement part. Moog introduced the R-Series arms to provide replacements for a wide range of domestic and foreign vehicles. The RK Series line of control arms has OE fit and form geometry alignment. The arms with pre-installed OE style bushings mostly include ball joints. These ball joints are not serviceable like the CK arms. All R Series line of control arms are produced as per Moog validated design and construction, providing quality at a less expensive price.
This product fits in a few models ofHyundai Elantra.
SKU: e552w58lge
| Adjustable | No |
|---|---|
| Anti Lock Brake Sensor Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Bolt Circle Diameter(in) | 4.500 |
| Bolt Circle Diameter(mm) | 114.300 |
| Brake Pilot Diameter(mm) | 68.900 |
| Bushing Material | Rubber |
| Bushings Included | Yes |
| Control Arm Material | Stamped Steel |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter(mm) | 138.000 |
| Flange Offset(mm) | 59.000 |
| Flange Shape | Modified |
| Grease Fitting Included | No |
| Hub Pilot Diameter(mm) | 63.000 |
| Part Number | RK622646 |
| Wheel Pilot Diameter(mm) | 67.000 |
| Wheel Stud Quantity | 5 |
| Year | Make | Model |
|---|---|---|
| 2011, 2012, 2013, 2014, 2015, 2016, 2017 | HYUNDAI | ELANTRA |
| 2012, 2013, 2014, 2015, 2016, 2017 | HYUNDAI | VELOSTER |
| Specifications | Descriptions |
|---|---|
| No Specifications | |
