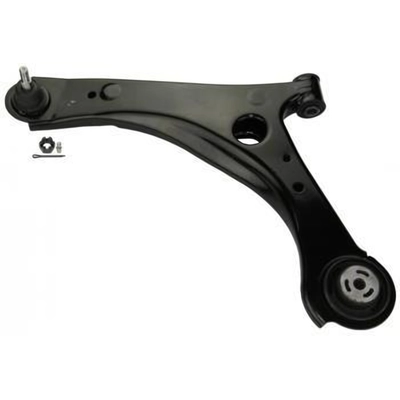

Moog R Series Control Arms With Ball Joint is the right choice for a value-driven replacement part. Moog introduced the R-Series arms to provide replacements for a wide range of domestic and foreign vehicles. The RK Series line of control arms has OE fit and form geometry alignment. The arms with pre-installed OE style bushings mostly include ball joints. These ball joints are not serviceable like the CK arms. All R Series line of control arms are produced as per Moog validated design and construction, providing quality at a less expensive price.
| Ball Joint Mounting Type | Press In |
|---|---|
| Ball Joint Stud Type | Threaded |
| Bolt Circle Diameter(in) | 4.500 |
| Bolt Circle Diameter(mm) | 114.300 |
| Brake Pilot Diameter(mm) | 57.000 |
| Bushing Material | Rubber |
| Bushings Included | Yes |
| Control Arm Color | Black |
| Control Arm Material | Stamped Steel |
| Control Arm Maximum Length | 19.230 |
| Control Arm Maximum Length(in) | 19.230 |
| Flange Diameter(mm) | 141.900 |
| Flange Offset(mm) | 62.100 |
| Grease Fitting Included | Yes |
| Hub Pilot Diameter(mm) | 77.000 |
| Meetsor Exceeds Original Equipment Manufacture Specifications | Yes |
| Mounting Hardware Included | Yes |
| Part Number | RK622033 |
| Pre Greased | Yes |
| Wheel Pilot Diameter(mm) | 56.500 |
| Wheel Stud Quantity | 5 |
| Year | Make | Model |
|---|
| Specifications | Descriptions |
|---|---|
| No Specifications | |
