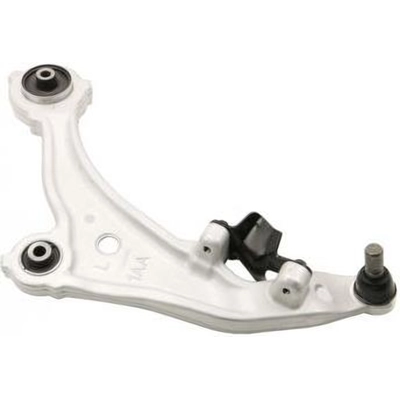

Moog R Series Control Arms With Ball Joint is the right choice for a value-driven replacement part. Moog introduced the R-Series arms to provide replacements for a wide range of domestic and foreign vehicles. The RK Series line of control arms has OE fit and form geometry alignment. The arms with pre-installed OE style bushings mostly include ball joints. These ball joints are not serviceable like the CK arms. All R Series line of control arms are produced as per Moog validated design and construction, providing quality at a less expensive price.
| Adjustable I | No |
|---|---|
| Anti Lock Brake Sensor Included | No |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Pinch |
| Bolt Circle Diameter(in) | 3.940 |
| Bolt Circle Diameter(mm) | 100.000 |
| Brake Pilot Diameter(mm) | 62.500 |
| Bushing Material | Rubber |
| Bushing Material I | Rubber |
| Bushings Included | Yes |
| Bushings Included I | Yes |
| Control Arm Color | Gray |
| Control Arm Material | Forged Aluminum |
| Control Arm Maximum Length | 14.840 |
| Control Arm Maximum Length(in) | 14.840 |
| Flange Diameter(mm) | 140.000 |
| Flange Offset(mm) | 50.500 |
| Grease Fitting Included | No |
| Hub Pilot Diameter(mm) | 70.000 |
| Mounting Hardware Included | Yes |
| Mounting Hardware Included I | Yes |
| Part Number | RK622158 |
| Pre Greased | Yes |
| Wheel Pilot Diameter(mm) | 54.000 |
| Wheel Stud Quantity | 4 |
